ImGui + SDL2 adventure editor for GRAAL data folders. Shares parsers with the runtime. Loads GRAAL.guide for statement/command tips and the on-line reference panel.

Screenshots

Room canvas with live project data.

Editor room canvas showing tavern backdrop and object overlays — Room document — Edit room tab, object overlays, Project Tree, World Map, Flags dock.

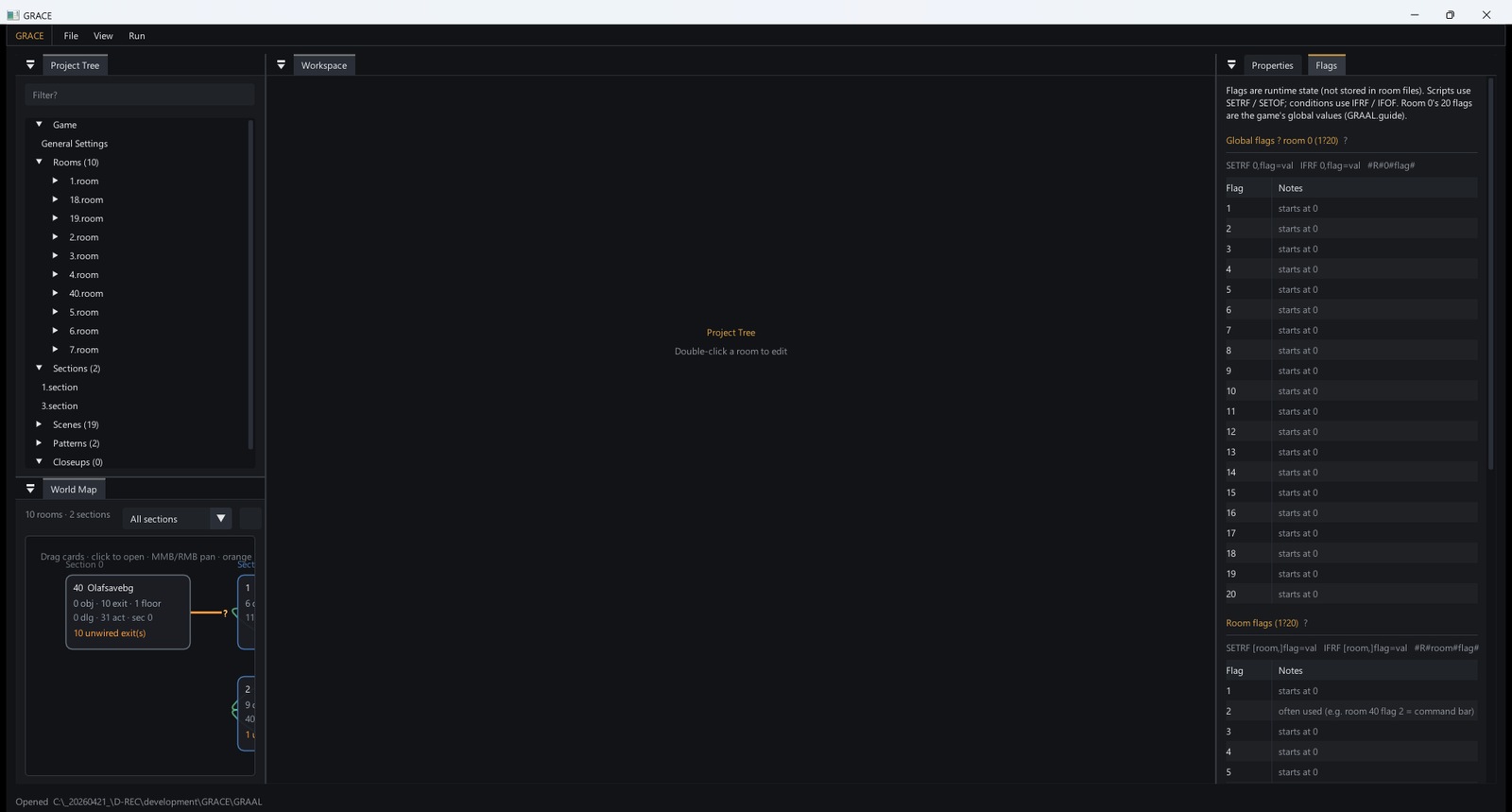

Editor overview with project tree world map and flags — Project open — World Map graph and Flags panel (global / room flag notes from the GRAAL guide).

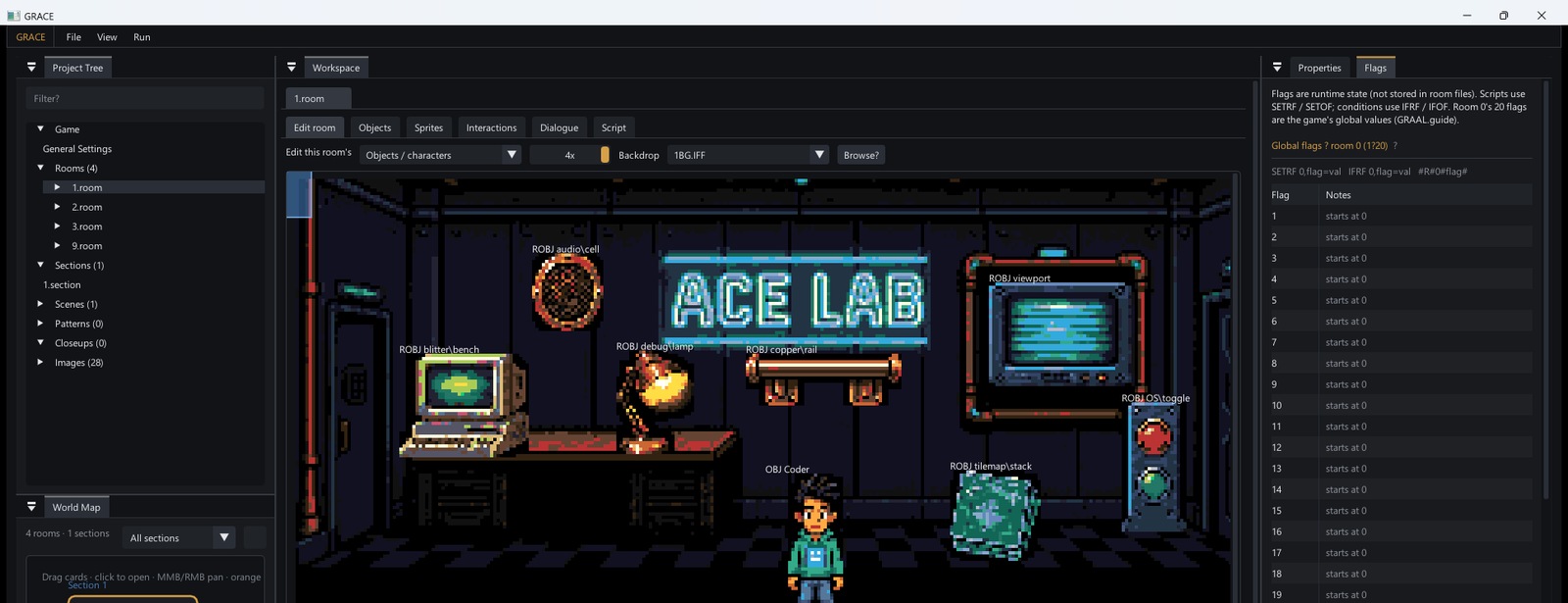

Editor editing ACE_Tour room — Another project (`ACE_Tour`) with a room document open in the workspace.

Workflow

Open → edit → save → run.

Run grace_editor (optionally pass a project folder and document: grace_editor.exe GRAAL 1.room).
File → Open a folder containing graal.main.
Double-click a room (or section / main / scene) in the Project Tree.
Edit on the canvas and in document tabs; Properties follow the selection.
Save Ctrl+S / File → Save (or Save All).
Run → Launch Game or Test Room.
Pack Paks when shipping Amiga main.pak / secN.pak.

App layout

Docked shell.

Dock / area	Role
Project Tree	Browse main / rooms / sections / scenes / patterns / images
World Map	Room graph; jump into rooms
Workspace	Tabbed documents (Edit room, Objects, Dialogue, Script…)
Properties	Selection fields + ? help from GRAAL.guide
Flags	Global / room flag notes for puzzle state
Guide	On-line reference viewer (AmigaGuide nodes)

Room canvas

Modes from the GRAAL room model.

Rooms follow the guide’s statement order: backdrop, start positions, floors, exits, clip-art / room images, static/anim bobs, room objects, enter actions (DACT), dialogue, verb ACTIONs. The canvas modes map to that work:

Mode	What you edit
Room	Overview; all overlays; room-level settings
Objects / characters	Place and drag room objects
Walkable areas	Floor rectangles and handles
Exits	Exit boxes and walk-to points
Start positions	Player entrances

See also Statements in .room and Structure.

Documents

What you edit.

Kind	Files	Workspace tabs
Main	`graal.main`	Overview, Character, Objects, Sprites, Command bar, Actions, Audio, Script
Room	`N.room`	Edit room, Objects, Sprites, Interactions, Dialogue, Script
Section	`N.section`	Edit section, Objects, Sprites, Interactions, Dialogue, Script
Scene	`N.scene`	Edit scene, Script
Pattern	`N.ptrn`	Edit pattern, Script
Image	`.png` / `.iff` / `.bm`…	Preview, palette, remap, export

Build

Getting the editor running.

cmake -S . -B build_sdl -DGRACE_BUILD_EDITOR=ON
cmake --build build_sdl --target grace_editor --config Release
build_sdl\editor\grace_editor.exe
build_sdl\editor\grace_editor.exe GRAAL 1.room

Art tip: Prefer indexed PNG. Script refs are extensionless stems (BACKDROP: 1BG). ACE .bm/.plt are export artifacts for Amiga packs.
